Traffic Light
High brightness LED traffic signal lights/signs for both indoor and outdoor applications.
| Technical Specifications: | |
| Power rating | Ø300mm single lamp≤15W Ø400mm single lamp ≤24W |
| Voltage rating | AC175~264V, 50HZ±2HZ |
| Light distribution | comply with GB14887-2003 standard |
| Central wave length | Red: 625nm Green: 505nm Yellow: 590nm |
| Light intensity | comply with GB14887-2011 standard |
| Color coordinates | comply with GB14887-2011 standard |
| Power | ≤24VA |
| Visible angle | ≥30° |
| Visible distance | Ø300mm traffic light: ≥300m Ø400mm traffic light: ≥400m |
| Working temperature | -40℃~+75℃ |
| Hydrothermal properties | when temperature=40℃, humidity≤93%±2% |
| Insulating resistance | ≥500MΩ |
| Dialectris strength | withstand 1450V |
| Dust proof | comply with GB14887-2011 standard |
| Anti-vibration | comply with GB14887-2011 standard |
| LED life span | ≥100,000 hours |
| Wind resistance | 145m/h |
| IP rate | ≥IP53 |
Dimensions:

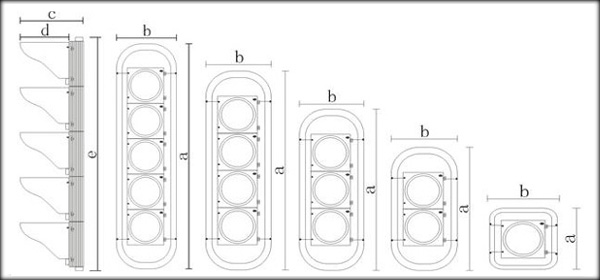

Ф300, Ф400 traffic lights general assembly pictures (w/o decoration for Ф200 serials)
Ф300 traffic lights dimensions:
|
S/N |
Model |
a(mm) |
b(mm) |
c(mm) |
d(mm) |
e(mm) |
N.W.(kg) |
|
1 |
1 lamp |
570 |
525 |
460 |
346 |
422 |
6/5 |
|
2 |
2 lamps |
1140 |
525 |
460 |
346 |
800 |
11/10 |
|
3 |
3 lamps |
1515 |
525 |
460 |
346 |
1170 |
14/13 |
|
4 |
4 lamps |
1890 |
525 |
460 |
346 |
1544 |
20.5/19 |
|
5 |
5 lamps |
2265 |
525 |
460 |
346 |
1919 |
23.8/22 |
Ф400 traffic lights dimensions:
S/N |
Model |
a(mm) |
b(mm) |
c(mm) |
d(mm) |
e(mm) |
N.W.(kg) |
|
1 |
1 lamp |
900 |
700 |
500 |
346 |
520 |
12.5/11 |
|
2 |
2 lamps |
1330 |
700 |
500 |
346 |
984 |
21.5/19 |
|
3 |
3 lamps |
1809 |
700 |
500 |
346 |
1458 |
26/24 |
|
4 |
4 lamps |
2270 |
700 |
500 |
346 |
1930 |
34.5/32.5 |
|
5 |
5 lamps |
2740 |
700 |
500 |
346 |
2400 |
44/42.5 |
